A board for Makruk (Thai Chess) More...

#include <makrukboard.h>

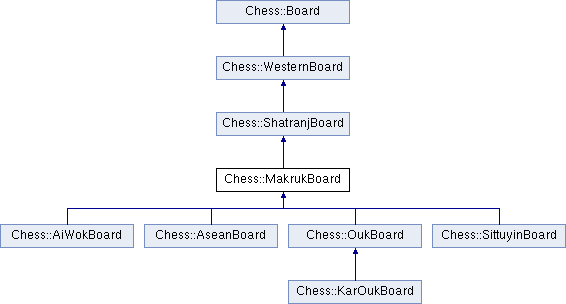

Inheritance diagram for Chess::MakrukBoard:

Public Member Functions
virtual Board *	copy () const

virtual QString	defaultFenString () const

	MakrukBoard ()

virtual Result	result ()

virtual QString	variant () const

Public Member Functions inherited from Chess::ShatranjBoard
	ShatranjBoard ()

Public Member Functions inherited from Chess::WesternBoard
virtual int	height () const

virtual int	reversibleMoveCount () const

	WesternBoard (WesternZobrist *zobrist)

virtual int	width () const

Public Member Functions inherited from Chess::Board
	Board (Zobrist *zobrist)

virtual CoordinateSystem	coordinateSystem () const

QString	fenString (FenNotation notation=XFen) const

GenericMove	genericMove (const Move &move) const

void	initialize ()

bool	isLegalMove (const Move &move)

virtual bool	isRandomVariant () const

bool	isRepetition (const Move &move)

bool	isValidSquare (const Square &square) const

quint64	key () const

QVector< Move >	legalMoves ()

void	makeMove (const Move &move, BoardTransition *transition=nullptr)

Move	moveFromGenericMove (const GenericMove &move) const

Move	moveFromString (const QString &str)

QString	moveString (const Move &move, MoveNotation notation)

Piece	pieceAt (const Square &square) const

Piece	pieceFromSymbol (const QString &pieceSymbol) const

QStringList	pieceList (Side side) const

QString	pieceString (int pieceType) const

QString	pieceSymbol (Piece piece) const

int	plyCount () const

int	repeatCount () const

QString	representation (Piece piece) const

int	reserveCount (Piece piece) const

virtual QList< Piece >	reservePieceTypes () const

void	reset ()

bool	setFenString (const QString &fen)

Side	sideToMove () const

QString	startingFenString () const

Side	startingSide () const

virtual Result	tablebaseResult (unsigned int *dtm=nullptr) const

void	undoMove ()

virtual Side	upperCaseSide () const

virtual bool	variantHasDrops () const

virtual bool	variantHasOptionalPromotions () const

virtual bool	variantHasWallSquares () const

virtual	~Board ()

Protected Types
enum	CountingRules { Makruk, BareKing }

enum	MakrukPieceType { Bia = Pawn, Ma = Knight, Khon = Bishop, Rua = Rook, Met = Queen, Khun = King }

Protected Types inherited from Chess::ShatranjBoard
enum	ShatranjPieceType { Ferz = Queen, Alfil = Bishop }

Protected Types inherited from Chess::WesternBoard
enum	CastlingSide { QueenSide, KingSide, NoCastlingSide }

enum	StepType { NoStep = 0, FreeStep = 1, CaptureStep = 2 }

Protected Member Functions
virtual int	countingLimit () const

virtual CountingRules	countingRules () const

virtual void	generateMovesForPiece (QVarLengthArray< Move > &moves, int pieceType, int square) const

virtual void	generatePawnMoves (int sourceSquare, QVarLengthArray< Move > &moves) const

virtual bool	inCheck (Side side, int square=0) const

void	initHistory ()

virtual bool	insufficientMaterial () const

int	pieceCount (Side side=Side::NoSide, int pieceType=Piece::NoPiece) const

virtual int	promotionRank (int file=0) const

Result	resultFromCounting () const

void	setAllPieceCounters ()

virtual QString	vFenString (FenNotation notation) const

virtual void	vInitialize ()

virtual void	vMakeMove (const Move &move, BoardTransition *transition)

virtual bool	vSetFenString (const QStringList &fen)

virtual void	vUndoMove (const Move &move)

Protected Member Functions inherited from Chess::ShatranjBoard
virtual void	addPromotions (int sourceSquare, int targetSquare, QVarLengthArray< Move > &moves) const

virtual bool	canBareOpponentKing ()

virtual bool	hasCastling () const

virtual bool	pawnHasDoubleStep () const

Protected Member Functions inherited from Chess::WesternBoard
virtual int	captureType (const Move &move) const

virtual int	castlingFile (CastlingSide castlingSide) const

int	enpassantSquare () const

bool	hasCastlingRight (Side side, CastlingSide castlingSide) const

virtual bool	hasEnPassantCaptures () const

virtual bool	isLegalPosition ()

virtual bool	kingCanCapture () const

virtual bool	kingsCountAssertion (int whiteKings, int blackKings) const

int	kingSquare (Side side) const

virtual QString	lanMoveString (const Move &move)

virtual Move	moveFromLanString (const QString &str)

virtual Move	moveFromSanString (const QString &str)

virtual bool	parseCastlingRights (QChar c)

int	pawnAmbiguity (StepType type=FreeStep) const

void	removeCastlingRights (int square)

void	removeCastlingRights (Side side)

virtual QString	sanMoveString (const Move &move)

virtual bool	variantHasChanneling (Side side, int square) const

virtual QString	vFenIncludeString (FenNotation notation) const

virtual bool	vIsLegalMove (const Move &move)

Protected Member Functions inherited from Chess::Board
void	addToReserve (const Piece &piece, int count=1)

int	arraySize () const

bool	canMove ()

Square	chessSquare (int index) const

Square	chessSquare (const QString &str) const

void	generateDropMoves (QVarLengthArray< Move > &moves, int pieceType) const

void	generateHoppingMoves (int sourceSquare, const QVarLengthArray< int > &offsets, QVarLengthArray< Move > &moves) const

void	generateMoves (QVarLengthArray< Move > &moves, int pieceType=Piece::NoPiece) const

void	generateSlidingMoves (int sourceSquare, const QVarLengthArray< int > &offsets, QVarLengthArray< Move > &moves) const

const Move &	lastMove () const

virtual int	maxPieceSymbolLength () const

bool	moveExists (const Move &move) const

Piece	pieceAt (int square) const

bool	pieceHasMovement (int pieceType, unsigned movement) const

void	removeFromReserve (const Piece &piece)

virtual int	reserveType (int pieceType) const

void	setPieceType (int type, const QString &name, const QString &symbol, unsigned movement=0, const QString &gsymbol=QString())

void	setSquare (int square, Piece piece)

int	squareIndex (const Square &square) const

int	squareIndex (const QString &str) const

QString	squareString (int index) const

QString	squareString (const Square &square) const

void	xorKey (quint64 key)

Static Protected Attributes
static const unsigned	SilverGeneralMovement = 256

Static Protected Attributes inherited from Chess::ShatranjBoard
static const unsigned	AlfilMovement = 32

static const unsigned	FerzMovement = 16

Static Protected Attributes inherited from Chess::WesternBoard
static const unsigned	BishopMovement = 4

static const unsigned	KnightMovement = 2

static const unsigned	RookMovement = 8

Additional Inherited Members
Public Types inherited from Chess::WesternBoard
enum	WesternPieceType { Pawn = 1, Knight, Bishop, Rook, Queen, King }

Public Types inherited from Chess::Board
enum	CoordinateSystem { NormalCoordinates, InvertedCoordinates }

enum	FenNotation { XFen, ShredderFen }

enum	MoveNotation { StandardAlgebraic, LongAlgebraic }

Protected Attributes inherited from Chess::WesternBoard
QVarLengthArray< PawnStep, 8 >	m_pawnSteps

Detailed Description

A board for Makruk (Thai Chess)

Makruk Chess is a variant of chess popular and with a long tradition in Thailand. It is very similar to Ouk Cha Trang (Cambodian Chess).

The Pawn, Knight, Rook, Ferz, and King are all traditional pieces with movements known from Chaturanga and Shatranj. In Makruk these pieces are named differently (with other meanings).

The Elephant (Gaja, Alfil) was replaced by the Khon (Base) which moves like Shogi's Silver General: 1 square diagonally or 1 square forward. Met is the Thai name of the Ferz which only moves 1 square diagonally.

Makruk has no Pawn double step option and no castling. When reaching the own sixth rank a Pawn (Bia, shell) is promoted to Ferz (Met, grain).

Like in standard chess giving mate wins, stalemate is a draw, and two bare kings is a draw. If there is (obviously) not enough material to force a win, the game will be drawn.

There is no fifty-move rule. When the last Pawn on the board is captured or promoted the game must be won within 64 moves else the game is drawn.

A new counting overrides when there are no Pawns on the board and a side is left with no pieces besides their "bare" King. The starting count equals 1 plus the number of pieces.

The counting limit depends on the stronger side: If they have 2 Rooks (with or without other pieces) it is 8 moves, 1 Rook: 16 moves, 2 Khons: 22 moves, 2 Knights: 32 moves, 1 Khon: 44 moves, else 64 moves. When the count exceeds the limit the game is drawn. There is no counting as long as there are any unpromoted pawns on the board.

Example: For KRRNP vs K the weaker side will count their moves 7 (= 1 + 6) and 8 (the limit defined by 2 Rooks), and if they have a legal move at count 9 the game will end in a draw.

Note: Rules: http://en.wikipedia.org/wiki/Makruk_chess

See also: ShatranjBoard; OukBoard

Note: This implementation can read and write positions in FEN standard notation and per default an adapted FEN notation where the fields have Makruk/Ouk specific meanings to support the counting rules: The castling field is present but unused in Makruk - it is used for initial move status in Ouk. The en passant field "-" is replaced by the active Makruk counting limit in plies. The half move count gives a ply count according to endgame counting rules instead of the reversible ply count of standard chess.

Member Enumeration Documentation

enum Chess::MakrukBoard::CountingRules

protected

Rule sets of Thai and Cambodian Chess

enum Chess::MakrukBoard::MakrukPieceType

protected

Piece types for Makruk

Enumerator
Bia	Shell, Chip.
Ma	Horse.
Khon	Base, replaces Alfil.
Rua	Boat.
Met	Grain: Mantri, Ferz, Advisor.
Khun	Leader, Chief.

Constructor & Destructor Documentation

Chess::MakrukBoard::MakrukBoard ( )

Creates a new MakrukBoard object.

Cowry Shell, Chip

Horse

Khon (Base) replaces Alfil (Bishop): moves as Shogi's Silver General

Boat

Grain: Advisor

Leader, Lord

Member Function Documentation

Board * Chess::MakrukBoard::copy ( ) const

virtual

Creates and returns a deep copy of this board.

Reimplemented from Chess::ShatranjBoard.

Reimplemented in Chess::KarOukBoard, Chess::SittuyinBoard, Chess::AseanBoard, Chess::OukBoard, and Chess::AiWokBoard.

int Chess::MakrukBoard::countingLimit ( ) const

protectedvirtual

Returns maximum count of plies allowed to finish the game: Limit for Board's Honour or Pieces' Honour counting.

Reimplemented in Chess::SittuyinBoard, and Chess::AseanBoard.

MakrukBoard::CountingRules Chess::MakrukBoard::countingRules ( ) const

protectedvirtual

Returns type of counting rules to apply. Default: Makruk.

See also: OukBoard

Reimplemented in Chess::SittuyinBoard, Chess::AseanBoard, and Chess::OukBoard.

QString Chess::MakrukBoard::defaultFenString ( ) const

virtual

Returns the variant's default starting FEN string.

Reimplemented from Chess::ShatranjBoard.

Reimplemented in Chess::KarOukBoard, Chess::SittuyinBoard, Chess::AseanBoard, Chess::OukBoard, and Chess::AiWokBoard.

void Chess::MakrukBoard::generateMovesForPiece	(	QVarLengthArray< Move > &	moves,
		int	pieceType,
		int	square
	)		const

protectedvirtual

Generates pseudo-legal moves for a piece of pieceType at square square.

Note: It doesn't matter if square doesn't contain a piece of pieceType, the move generator ignores it.

Reimplemented from Chess::ShatranjBoard.

Reimplemented in Chess::SittuyinBoard, and Chess::OukBoard.

void Chess::MakrukBoard::generatePawnMoves	(	int	sourceSquare,
		QVarLengthArray< Move > &	moves
	)		const

protectedvirtual

Appends generated pseudo-legal pawn moves to moves

Reimplemented in Chess::SittuyinBoard.

bool Chess::MakrukBoard::inCheck	(	Side	side,
		int	square = `0`
	)		const

protectedvirtual

Returns true if side is under attack at square. If square is 0, then the king square is used.

Reimplemented from Chess::ShatranjBoard.

Reimplemented in Chess::OukBoard.

void Chess::MakrukBoard::initHistory ( )

protected

Initialize counter history

bool Chess::MakrukBoard::insufficientMaterial ( ) const

protectedvirtual

Returns true if material on board is known to be not sufficient to enforce mate, else false.

Reimplemented in Chess::AiWokBoard.

int Chess::MakrukBoard::pieceCount	(	Side	side = `Side::NoSide`,
		int	pieceType = `Piece::NoPiece`
	)		const

protected

Returns the number of pieces of side and of pieceType. NoPiece as pieceType counts all pieces of side. This is the default. If side is set to NoSide then the count of all pieces of pieceType is given. A call without arguments returns the total piece count.

int Chess::MakrukBoard::promotionRank ( int file = 0 ) const

protectedvirtual

Returns the relative rank of pawn promotions counting from 0 for the first rank. The default returns 5 for promotions on the sixth rank. The formal file parameter is unused. Override this method if the promotion rank is not uniform.

See also: SittuyinBoard

Reimplemented in Chess::SittuyinBoard, and Chess::AseanBoard.

Result Chess::MakrukBoard::result ( )

virtual

Returns the result of the game, or Result::NoResult if the game is in progress.

Reimplemented from Chess::ShatranjBoard.

Reimplemented in Chess::SittuyinBoard, Chess::KarOukBoard, and Chess::AseanBoard.

Result Chess::MakrukBoard::resultFromCounting ( ) const

protected

Returns game result based on specific counting rules

void Chess::MakrukBoard::setAllPieceCounters ( )

protected

Counts all pieces on the board and updates all counters of last MoveData entry in move history.

QString Chess::MakrukBoard::variant ( ) const

virtual

Returns the name of the chess variant.

Reimplemented from Chess::ShatranjBoard.

Reimplemented in Chess::KarOukBoard, Chess::SittuyinBoard, Chess::AseanBoard, Chess::OukBoard, and Chess::AiWokBoard.

QString Chess::MakrukBoard::vFenString ( Board::FenNotation notation ) const

protectedvirtual

When using Makruk counting rules (no Western counting)

This method sets the castling rights field to "-" for Makruk.
The ep field is replaced by the counting limit (in plies).
Makruk ply counting replaces the reversible move count.
This method uses an own total ply counter to keep track of the full move count.

Examples: Default FEN: rnsmksnr/8/pppppppp/8/8/PPPPPPPP/8/RNSKMSNR w - 0 0 1 KSSMvK black mates: 8/8/2m5/s7/8/1k6/1s6/1K6 w - 44 38 182

Reimplemented from Chess::WesternBoard.

Reimplemented in Chess::OukBoard, and Chess::AseanBoard.

void Chess::MakrukBoard::vInitialize ( )

protectedvirtual

Initializes the variant.

This function is called by initialize(). Subclasses shouldn't generally call it by themselves.

Reimplemented from Chess::ShatranjBoard.

void Chess::MakrukBoard::vMakeMove	(	const Move &	move,
		BoardTransition *	transition
	)

protectedvirtual

Makes move on the board.

This function is called by makeMove(), and should take care of everything except changing the side to move and updating the move history.

Details about piece movement, promotions, captures, drops, etc. should be stored in transition. If transition is 0 then it should be ignored.

Reimplemented from Chess::WesternBoard.

Reimplemented in Chess::SittuyinBoard, and Chess::OukBoard.

bool Chess::MakrukBoard::vSetFenString ( const QStringList & inputFen )

protectedvirtual

This method reads FEN with full Makruk/Ouk counting support (A), standard FEN (B), and short FEN-like notation without castling rights and en passant fields (C). The latter two use Western counting and ignore Makruk counting.

A: rnsmksnr/8/pppppppp/8/8/PPPPPPPP/8/RNSKMSNR w - 0 0 1

B: rnsmksnr/8/pppppppp/8/8/PPPPPPPP/8/RNSKMSNR w - - 0 1 C: rnsmksnr/8/pppppppp/8/8/PPPPPPPP/8/RNSKMSNR w 0 1

FEN with Ouk initial move rights instead of castling rights are supported by OukBoard. Format C does not carry this information. Also see OukBoard.

Reimplemented from Chess::WesternBoard.

Reimplemented in Chess::SittuyinBoard, Chess::OukBoard, and Chess::AseanBoard.

void Chess::MakrukBoard::vUndoMove ( const Move & move )

protectedvirtual

Reverses move on the board.

This function is called by undoMove() after changing the side to move to the side that made it.

Note: Unlike vMakeMove(), this function doesn't require subclasses to update the zobrist position key.

Reimplemented from Chess::WesternBoard.

Reimplemented in Chess::SittuyinBoard, and Chess::OukBoard.

Member Data Documentation

const unsigned Chess::MakrukBoard::SilverGeneralMovement = 256

staticprotected

Khon moves like Silver General.

The documentation for this class was generated from the following files:

projects/lib/src/board/makrukboard.h
projects/lib/src/board/makrukboard.cpp

Public Member Functions

Protected Types

Protected Member Functions

Static Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
