A board for western chess variants. More...

#include <westernboard.h>

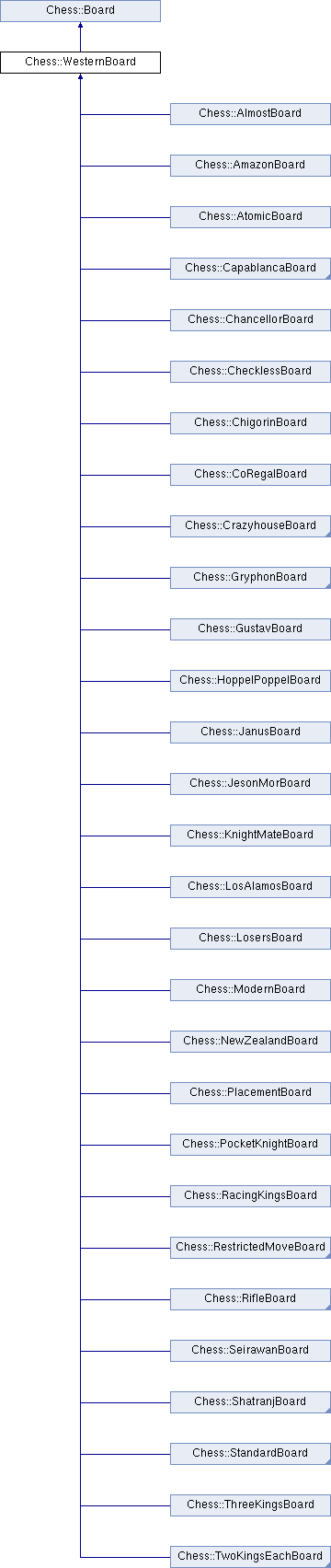

Inheritance diagram for Chess::WesternBoard:

Classes
struct	PawnStep

Public Types
enum	WesternPieceType { Pawn = 1, Knight, Bishop, Rook, Queen, King }

Public Types inherited from Chess::Board
enum	CoordinateSystem { NormalCoordinates, InvertedCoordinates }

enum	FenNotation { XFen, ShredderFen }

enum	MoveNotation { StandardAlgebraic, LongAlgebraic }

Public Member Functions
virtual int	height () const

virtual Result	result ()

virtual int	reversibleMoveCount () const

	WesternBoard (WesternZobrist *zobrist)

virtual int	width () const

Public Member Functions inherited from Chess::Board
	Board (Zobrist *zobrist)

virtual CoordinateSystem	coordinateSystem () const

virtual Board *	copy () const =0

virtual QString	defaultFenString () const =0

QString	fenString (FenNotation notation=XFen) const

GenericMove	genericMove (const Move &move) const

void	initialize ()

bool	isLegalMove (const Move &move)

virtual bool	isRandomVariant () const

bool	isRepetition (const Move &move)

bool	isValidSquare (const Square &square) const

quint64	key () const

QVector< Move >	legalMoves ()

void	makeMove (const Move &move, BoardTransition *transition=nullptr)

Move	moveFromGenericMove (const GenericMove &move) const

Move	moveFromString (const QString &str)

QString	moveString (const Move &move, MoveNotation notation)

Piece	pieceAt (const Square &square) const

Piece	pieceFromSymbol (const QString &pieceSymbol) const

QStringList	pieceList (Side side) const

QString	pieceString (int pieceType) const

QString	pieceSymbol (Piece piece) const

int	plyCount () const

int	repeatCount () const

QString	representation (Piece piece) const

int	reserveCount (Piece piece) const

virtual QList< Piece >	reservePieceTypes () const

void	reset ()

bool	setFenString (const QString &fen)

Side	sideToMove () const

QString	startingFenString () const

Side	startingSide () const

virtual Result	tablebaseResult (unsigned int *dtm=nullptr) const

void	undoMove ()

virtual Side	upperCaseSide () const

virtual QString	variant () const =0

virtual bool	variantHasDrops () const

virtual bool	variantHasOptionalPromotions () const

virtual bool	variantHasWallSquares () const

virtual	~Board ()

Protected Types
enum	CastlingSide { QueenSide, KingSide, NoCastlingSide }

enum	StepType { NoStep = 0, FreeStep = 1, CaptureStep = 2 }

Protected Member Functions
virtual void	addPromotions (int sourceSquare, int targetSquare, QVarLengthArray< Move > &moves) const

virtual int	captureType (const Move &move) const

virtual int	castlingFile (CastlingSide castlingSide) const

int	enpassantSquare () const

virtual void	generateMovesForPiece (QVarLengthArray< Move > &moves, int pieceType, int square) const

virtual bool	hasCastling () const

bool	hasCastlingRight (Side side, CastlingSide castlingSide) const

virtual bool	hasEnPassantCaptures () const

virtual bool	inCheck (Side side, int square=0) const

virtual bool	isLegalPosition ()

virtual bool	kingCanCapture () const

virtual bool	kingsCountAssertion (int whiteKings, int blackKings) const

int	kingSquare (Side side) const

virtual QString	lanMoveString (const Move &move)

virtual Move	moveFromLanString (const QString &str)

virtual Move	moveFromSanString (const QString &str)

virtual bool	parseCastlingRights (QChar c)

int	pawnAmbiguity (StepType type=FreeStep) const

virtual bool	pawnHasDoubleStep () const

void	removeCastlingRights (int square)

void	removeCastlingRights (Side side)

virtual QString	sanMoveString (const Move &move)

virtual bool	variantHasChanneling (Side side, int square) const

virtual QString	vFenIncludeString (FenNotation notation) const

virtual QString	vFenString (FenNotation notation) const

virtual void	vInitialize ()

virtual bool	vIsLegalMove (const Move &move)

virtual void	vMakeMove (const Move &move, BoardTransition *transition)

virtual bool	vSetFenString (const QStringList &fen)

virtual void	vUndoMove (const Move &move)

Protected Member Functions inherited from Chess::Board
void	addToReserve (const Piece &piece, int count=1)

int	arraySize () const

bool	canMove ()

Square	chessSquare (int index) const

Square	chessSquare (const QString &str) const

void	generateDropMoves (QVarLengthArray< Move > &moves, int pieceType) const

void	generateHoppingMoves (int sourceSquare, const QVarLengthArray< int > &offsets, QVarLengthArray< Move > &moves) const

void	generateMoves (QVarLengthArray< Move > &moves, int pieceType=Piece::NoPiece) const

void	generateSlidingMoves (int sourceSquare, const QVarLengthArray< int > &offsets, QVarLengthArray< Move > &moves) const

const Move &	lastMove () const

virtual int	maxPieceSymbolLength () const

bool	moveExists (const Move &move) const

Piece	pieceAt (int square) const

bool	pieceHasMovement (int pieceType, unsigned movement) const

void	removeFromReserve (const Piece &piece)

virtual int	reserveType (int pieceType) const

void	setPieceType (int type, const QString &name, const QString &symbol, unsigned movement=0, const QString &gsymbol=QString())

void	setSquare (int square, Piece piece)

int	squareIndex (const Square &square) const

int	squareIndex (const QString &str) const

QString	squareString (int index) const

QString	squareString (const Square &square) const

void	xorKey (quint64 key)

Protected Attributes
QVarLengthArray< PawnStep, 8 >	m_pawnSteps

Static Protected Attributes
static const unsigned	BishopMovement = 4

static const unsigned	KnightMovement = 2

static const unsigned	RookMovement = 8

Detailed Description

A board for western chess variants.

WesternBoard serves as the overclass for all western variants. In addition to possibly unique pieces, a western variant has the same pieces as standard chess, the same rules for castling, en-passant capture, promotion, etc.

WesternBoard implements the rules of standard chess, including check, checkmate, stalemate, promotion, 3-fold repetition, 50 move rule and draws by insufficient material.

Member Enumeration Documentation

enum Chess::WesternBoard::CastlingSide

protected

The king's castling side.

Enumerator
QueenSide	Queen side (O-O-O)
KingSide	King side (O-O)
NoCastlingSide	No castling side.

enum Chess::WesternBoard::StepType

protected

Types of Pawn moves.

Enumerator
NoStep	Cannot move here.
FreeStep	May move if target is empty.
CaptureStep	Capture opposing piece only.

enum Chess::WesternBoard::WesternPieceType

Basic piece types for western variants.

Enumerator
Pawn	Pawn.
Knight	Knight.
Bishop	Bishop.
Rook	Rook.
Queen	Queen.
King	King.

Constructor & Destructor Documentation

Chess::WesternBoard::WesternBoard ( WesternZobrist * zobrist )

Creates a new WesternBoard object.

Member Function Documentation

void Chess::WesternBoard::addPromotions	(	int	sourceSquare,
		int	targetSquare,
		QVarLengthArray< Move > &	moves
	)		const

protectedvirtual

Adds pawn promotions to a move list.

This function is called when a pawn can promote by moving from sourceSquare to targetSquare. This function generates all the possible promotions and adds them to moves.

Reimplemented in Chess::SittuyinBoard, Chess::ShatranjBoard, Chess::AseanBoard, Chess::AntiBoard, Chess::SeirawanBoard, Chess::CodrusBoard, Chess::ModernBoard, Chess::ExtinctionBoard, Chess::ChancellorBoard, Chess::JanusBoard, Chess::GustavBoard, Chess::ChigorinBoard, Chess::KnightMateBoard, Chess::RifleBoard, Chess::CapablancaBoard, and Chess::LosAlamosBoard.

int Chess::WesternBoard::captureType ( const Move & move ) const

protectedvirtual

Returns the type of piece captured by move. Returns Piece::NoPiece if move is not a capture.

Reimplemented from Chess::Board.

int Chess::WesternBoard::castlingFile ( CastlingSide castlingSide ) const

protectedvirtual

Defines the file a king may castle to on castlingSide. Defaults: 2 (c-file) and width() - 2 (normally g-file)

Reimplemented in Chess::JanusBoard, Chess::ModernBoard, Chess::ChancellorBoard, Chess::GustavBoard, and Chess::EmbassyBoard.

int Chess::WesternBoard::enpassantSquare ( ) const

protected

Returns the current en-passant square.

void Chess::WesternBoard::generateMovesForPiece	(	QVarLengthArray< Move > &	moves,
		int	pieceType,
		int	square
	)		const

protectedvirtual

Generates pseudo-legal moves for a piece of pieceType at square square.

Note: It doesn't matter if square doesn't contain a piece of pieceType, the move generator ignores it.

Implements Chess::Board.

Reimplemented in Chess::ChangeOverBoard, Chess::MakrukBoard, Chess::SimplifiedGryphonBoard, Chess::SittuyinBoard, Chess::ShatranjBoard, Chess::CourierBoard, Chess::NewZealandBoard, Chess::SeirawanBoard, Chess::CrazyhouseBoard, Chess::OukBoard, Chess::PlacementBoard, Chess::GrandBoard, Chess::GryphonBoard, Chess::PocketKnightBoard, Chess::TwoKingsEachBoard, Chess::KnightMateBoard, and Chess::HoppelPoppelBoard.

bool Chess::WesternBoard::hasCastling ( ) const

protectedvirtual

Returns true if castling is allowed. The default value is true.

See also: ShatranjBoard

Reimplemented in Chess::ShatranjBoard, Chess::AntiBoard, Chess::GrandBoard, Chess::GiveawayBoard, and Chess::LosAlamosBoard.

bool Chess::WesternBoard::hasCastlingRight	(	Side	side,
		CastlingSide	castlingSide
	)		const

protected

Returns true if side has a right to castle on castlingSide; otherwise returns false.

Note: Even if this function returns true, castling may not be a legal move in the current position.

bool Chess::WesternBoard::hasEnPassantCaptures ( ) const

protectedvirtual

Returns true if a pawn can be captured en passant after an initial double step. The default value is the value of pawnHasDoubleStep().

int Chess::WesternBoard::height ( ) const

virtual

Returns the height of the board in squares.

Implements Chess::Board.

Reimplemented in Chess::GrandBoard, Chess::ModernBoard, Chess::ChancellorBoard, Chess::GustavBoard, Chess::JesonMorBoard, and Chess::LosAlamosBoard.

bool Chess::WesternBoard::inCheck	(	Side	side,
		int	square = `0`
	)		const

protectedvirtual

Returns true if side is under attack at square. If square is 0, then the king square is used.

Reimplemented in Chess::MakrukBoard, Chess::CircularGryphonBoard, Chess::ShatranjBoard, Chess::CourierBoard, Chess::OukBoard, Chess::AntiBoard, Chess::ExtinctionBoard, Chess::GryphonBoard, Chess::KnightMateBoard, Chess::TwoKingsEachBoard, Chess::RifleBoard, Chess::CoRegalBoard, Chess::JesonMorBoard, Chess::ThreeKingsBoard, Chess::AtomicBoard, and Chess::RestrictedMoveBoard.

bool Chess::WesternBoard::isLegalPosition ( )

protectedvirtual

Returns true if the current position is a legal position. If the position isn't legal it usually means that the last move was illegal.

Implements Chess::Board.

Reimplemented in Chess::ChangeOverBoard, Chess::SittuyinBoard, Chess::PlacementBoard, Chess::GryphonBoard, Chess::RacingKingsBoard, and Chess::ChecklessBoard.

bool Chess::WesternBoard::kingCanCapture ( ) const

protectedvirtual

Returns true if the king can capture opposing pieces. The default value is true.

See also: AtomicBoard

Reimplemented in Chess::AtomicBoard.

bool Chess::WesternBoard::kingsCountAssertion	(	int	whiteKings,
		int	blackKings
	)		const

protectedvirtual

Returns true if both counts of kings given by whiteKings and blackKings are correct. WesternBoard expects exactly one king per side.

See also: AntiBoard; HordeBoard

Reimplemented in Chess::CircularGryphonBoard, Chess::SittuyinBoard, Chess::PlacementBoard, Chess::AntiBoard, Chess::CodrusBoard, Chess::ExtinctionBoard, Chess::HordeBoard, Chess::GryphonBoard, Chess::TwoKingsEachBoard, Chess::JesonMorBoard, and Chess::ThreeKingsBoard.

int Chess::WesternBoard::kingSquare ( Side side ) const

protected

Returns the king square of side.

QString Chess::WesternBoard::lanMoveString ( const Move & move )

protectedvirtual

Converts a Move object into a string in Long Algebraic Notation (LAN)

Reimplemented from Chess::Board.

Reimplemented in Chess::SeirawanBoard.

Move Chess::WesternBoard::moveFromLanString ( const QString & str )

protectedvirtual

Converts a string in LAN format into a Move object.

Reimplemented from Chess::Board.

Reimplemented in Chess::SeirawanBoard, and Chess::TwoKingsEachBoard.

Move Chess::WesternBoard::moveFromSanString ( const QString & str )

protectedvirtual

Converts a string in SAN format into a Move object.

Implements Chess::Board.

Reimplemented in Chess::SeirawanBoard, Chess::CrazyhouseBoard, Chess::JanusBoard, Chess::AndernachBoard, Chess::TwoKingsEachBoard, Chess::KnightMateBoard, and Chess::ModernBoard.

bool Chess::WesternBoard::parseCastlingRights ( QChar c )

protectedvirtual

Parse castling rights given by character c of the FEN token. Returns true if successful.

Reimplemented in Chess::SeirawanBoard, and Chess::OukBoard.

int Chess::WesternBoard::pawnAmbiguity ( StepType type = FreeStep ) const

protected

Helper function for Pawn moves. Returns the count of moves of the given type that are specified in pawnSteps.

bool Chess::WesternBoard::pawnHasDoubleStep ( ) const

protectedvirtual

Returns true if pawns have an initial double step option. The default value is true.

See also: ShatranjBoard

Reimplemented in Chess::ShatranjBoard, and Chess::LosAlamosBoard.

void Chess::WesternBoard::removeCastlingRights ( int square )

protected

Removes castling rights at square.

If one of the players has a rook at square, the rook can't be used for castling. This function should be called when a capture happens at square.

void Chess::WesternBoard::removeCastlingRights ( Side side )

protected

Removes all castling rights of side.

Result Chess::WesternBoard::result ( )

virtual

Returns the result of the game, or Result::NoResult if the game is in progress.

Implements Chess::Board.

Reimplemented in Chess::SittuyinBoard, Chess::KarOukBoard, Chess::MakrukBoard, Chess::AseanBoard, Chess::ShatranjBoard, Chess::AntiBoard, Chess::CodrusBoard, Chess::ExtinctionBoard, Chess::PlacementBoard, Chess::HordeBoard, Chess::NCheckBoard, Chess::TwoKingsEachBoard, Chess::KingOfTheHillBoard, Chess::JesonMorBoard, Chess::RacingKingsBoard, Chess::ThreeKingsBoard, Chess::LosersBoard, and Chess::AtomicBoard.

int Chess::WesternBoard::reversibleMoveCount ( ) const

virtual

Returns the number of consecutive reversible moves made.

The default implementation always returns -1.

Reimplemented from Chess::Board.

QString Chess::WesternBoard::sanMoveString ( const Move & move )

protectedvirtual

Converts a Move object into a string in Standard Algebraic Notation (SAN).

Note: Specs: http://en.wikipedia.org/wiki/Algebraic_chess_notation

Implements Chess::Board.

Reimplemented in Chess::SeirawanBoard, Chess::CrazyhouseBoard, Chess::JanusBoard, Chess::AndernachBoard, and Chess::ModernBoard.

bool Chess::WesternBoard::variantHasChanneling	(	Side	side,
		int	square
	)		const

protectedvirtual

Returns true if a rule provides side to insert a reserve piece at a vacated source square immediately after a move. The default value is false.

See also: SeirawanBoard

Reimplemented in Chess::SeirawanBoard.

QString Chess::WesternBoard::vFenIncludeString ( FenNotation notation ) const

protectedvirtual

Returns FEN extensions. The default is an empty string.

This function is called by fenString() via vFenString(). Returns additional parts of the current position's (extended) FEN string which succeed the en passant field.

Reimplemented in Chess::NCheckBoard.

QString Chess::WesternBoard::vFenString ( FenNotation notation ) const

protectedvirtual

Returns the latter part of the current position's FEN string.

This function is called by fenString(). The board state, side to move and hand pieces are handled by the base class. This function returns the rest of it, if any.

Implements Chess::Board.

Reimplemented in Chess::MakrukBoard, Chess::SeirawanBoard, Chess::OukBoard, and Chess::AseanBoard.

void Chess::WesternBoard::vInitialize ( )

protectedvirtual

Initializes the variant.

This function is called by initialize(). Subclasses shouldn't generally call it by themselves.

Implements Chess::Board.

Reimplemented in Chess::MakrukBoard, Chess::ShatranjBoard, Chess::CourierBoard, Chess::NCheckBoard, Chess::GryphonBoard, Chess::TwoKingsEachBoard, and Chess::AtomicBoard.

bool Chess::WesternBoard::vIsLegalMove ( const Move & move )

protectedvirtual

Returns true if move is a legal move.

This function is called by isLegalMove() after making sure that there is a pseudo-legal move same as move. This function shouldn't check for the existence of move by generating moves.

The default implementation only checks if the position after move is legal.

Reimplemented from Chess::Board.

Reimplemented in Chess::SittuyinBoard, Chess::ShootBoard, Chess::AntiBoard, Chess::CodrusBoard, Chess::GrandBoard, Chess::HordeBoard, Chess::AtomicBoard, Chess::LosersBoard, and Chess::RestrictedMoveBoard.

void Chess::WesternBoard::vMakeMove	(	const Move &	move,
		BoardTransition *	transition
	)

protectedvirtual

Makes move on the board.

This function is called by makeMove(), and should take care of everything except changing the side to move and updating the move history.

Details about piece movement, promotions, captures, drops, etc. should be stored in transition. If transition is 0 then it should be ignored.

Implements Chess::Board.

Reimplemented in Chess::MakrukBoard, Chess::SimplifiedGryphonBoard, Chess::SittuyinBoard, Chess::OukBoard, Chess::SeirawanBoard, Chess::CrazyhouseBoard, Chess::PlacementBoard, Chess::AndernachBoard, Chess::NCheckBoard, Chess::GryphonBoard, Chess::GiveawayBoard, Chess::PocketKnightBoard, Chess::AtomicBoard, and Chess::RifleBoard.

bool Chess::WesternBoard::vSetFenString ( const QStringList & fen )

protectedvirtual

Sets the board according to a FEN string.

This function is called by setFenString(). The board state, side to move and hand pieces are handled by the base class. This function reads the rest of the string, if any.

Implements Chess::Board.

Reimplemented in Chess::MakrukBoard, Chess::SittuyinBoard, Chess::OukBoard, Chess::AseanBoard, Chess::SeirawanBoard, Chess::PlacementBoard, Chess::AntiBoard, Chess::NCheckBoard, Chess::AtomicBoard, and Chess::LosersBoard.

void Chess::WesternBoard::vUndoMove ( const Move & move )

protectedvirtual

Reverses move on the board.

This function is called by undoMove() after changing the side to move to the side that made it.

Note: Unlike vMakeMove(), this function doesn't require subclasses to update the zobrist position key.

Implements Chess::Board.

Reimplemented in Chess::MakrukBoard, Chess::SimplifiedGryphonBoard, Chess::SittuyinBoard, Chess::OukBoard, Chess::SeirawanBoard, Chess::CrazyhouseBoard, Chess::PlacementBoard, Chess::AndernachBoard, Chess::NCheckBoard, Chess::GryphonBoard, Chess::PocketKnightBoard, Chess::AtomicBoard, and Chess::RifleBoard.

int Chess::WesternBoard::width ( ) const

virtual

Returns the width of the board in squares.

Implements Chess::Board.

Reimplemented in Chess::CourierBoard, Chess::ModernBoard, Chess::ChancellorBoard, Chess::JanusBoard, Chess::GustavBoard, Chess::LosAlamosBoard, Chess::JesonMorBoard, and Chess::CapablancaBoard.

Member Data Documentation

const unsigned Chess::WesternBoard::BishopMovement = 4

staticprotected

Movement mask for Bishop moves.

const unsigned Chess::WesternBoard::KnightMovement = 2

staticprotected

Movement mask for Knight moves.

QVarLengthArray<PawnStep, 8> Chess::WesternBoard::m_pawnSteps

protected

Movement mask for Pawn moves. Lists pawn move types and relative files

See also: BerolinaBoard

Default: A Pawn can step straight ahead onto a free square or capture diagonally forward. So initialise this as { {CaptureStep, -1}, {FreeStep, 0}, {CaptureStep, 1} }

const unsigned Chess::WesternBoard::RookMovement = 8

staticprotected

Movement mask for Rook moves.

The documentation for this class was generated from the following files:

projects/lib/src/board/westernboard.h
projects/lib/src/board/westernboard.cpp

Classes

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
