An internal chessboard class. More...

#include <board.h>

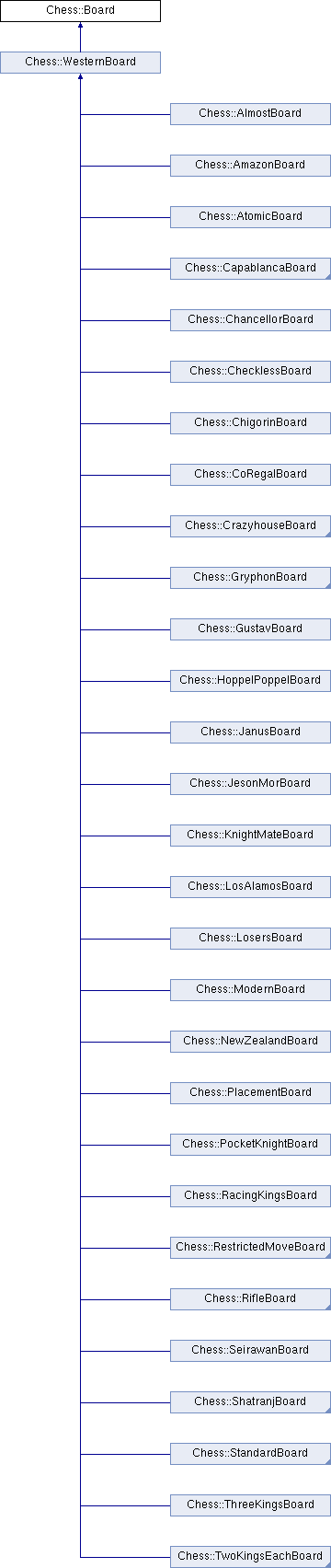

Inheritance diagram for Chess::Board:

Public Types
enum	CoordinateSystem { NormalCoordinates, InvertedCoordinates }

enum	FenNotation { XFen, ShredderFen }

enum	MoveNotation { StandardAlgebraic, LongAlgebraic }

Public Member Functions
	Board (Zobrist *zobrist)

virtual CoordinateSystem	coordinateSystem () const

virtual Board *	copy () const =0

virtual QString	defaultFenString () const =0

QString	fenString (FenNotation notation=XFen) const

GenericMove	genericMove (const Move &move) const

virtual int	height () const =0

void	initialize ()

bool	isLegalMove (const Move &move)

virtual bool	isRandomVariant () const

bool	isRepetition (const Move &move)

bool	isValidSquare (const Square &square) const

quint64	key () const

QVector< Move >	legalMoves ()

void	makeMove (const Move &move, BoardTransition *transition=nullptr)

Move	moveFromGenericMove (const GenericMove &move) const

Move	moveFromString (const QString &str)

QString	moveString (const Move &move, MoveNotation notation)

Piece	pieceAt (const Square &square) const

Piece	pieceFromSymbol (const QString &pieceSymbol) const

QStringList	pieceList (Side side) const

QString	pieceString (int pieceType) const

QString	pieceSymbol (Piece piece) const

int	plyCount () const

int	repeatCount () const

QString	representation (Piece piece) const

int	reserveCount (Piece piece) const

virtual QList< Piece >	reservePieceTypes () const

void	reset ()

virtual Result	result ()=0

virtual int	reversibleMoveCount () const

bool	setFenString (const QString &fen)

Side	sideToMove () const

QString	startingFenString () const

Side	startingSide () const

virtual Result	tablebaseResult (unsigned int *dtm=nullptr) const

void	undoMove ()

virtual Side	upperCaseSide () const

virtual QString	variant () const =0

virtual bool	variantHasDrops () const

virtual bool	variantHasOptionalPromotions () const

virtual bool	variantHasWallSquares () const

virtual int	width () const =0

virtual	~Board ()

Protected Member Functions
void	addToReserve (const Piece &piece, int count=1)

int	arraySize () const

bool	canMove ()

virtual int	captureType (const Move &move) const

Square	chessSquare (int index) const

Square	chessSquare (const QString &str) const

void	generateDropMoves (QVarLengthArray< Move > &moves, int pieceType) const

void	generateHoppingMoves (int sourceSquare, const QVarLengthArray< int > &offsets, QVarLengthArray< Move > &moves) const

void	generateMoves (QVarLengthArray< Move > &moves, int pieceType=Piece::NoPiece) const

virtual void	generateMovesForPiece (QVarLengthArray< Move > &moves, int pieceType, int square) const =0

void	generateSlidingMoves (int sourceSquare, const QVarLengthArray< int > &offsets, QVarLengthArray< Move > &moves) const

virtual bool	isLegalPosition ()=0

virtual QString	lanMoveString (const Move &move)

const Move &	lastMove () const

virtual int	maxPieceSymbolLength () const

bool	moveExists (const Move &move) const

virtual Move	moveFromLanString (const QString &str)

virtual Move	moveFromSanString (const QString &str)=0

Piece	pieceAt (int square) const

bool	pieceHasMovement (int pieceType, unsigned movement) const

void	removeFromReserve (const Piece &piece)

virtual int	reserveType (int pieceType) const

virtual QString	sanMoveString (const Move &move)=0

void	setPieceType (int type, const QString &name, const QString &symbol, unsigned movement=0, const QString &gsymbol=QString())

void	setSquare (int square, Piece piece)

int	squareIndex (const Square &square) const

int	squareIndex (const QString &str) const

QString	squareString (int index) const

QString	squareString (const Square &square) const

virtual QString	vFenString (FenNotation notation) const =0

virtual void	vInitialize ()=0

virtual bool	vIsLegalMove (const Move &move)

virtual void	vMakeMove (const Move &move, BoardTransition *transition)=0

virtual bool	vSetFenString (const QStringList &fen)=0

virtual void	vUndoMove (const Move &move)=0

void	xorKey (quint64 key)

Friends
LIB_EXPORT QDebug	operator<< (QDebug dbg, const Board *board)

Detailed Description

An internal chessboard class.

This is the base class for all chess variants. Board's main purposes are:

keeping track of the game, and not just piece positions, but also castling rights, en passant square, played moves, repetitions, etc.
verifying the legality of moves played
parsing and generating strings for moves and positions in notations such as FEN, SAN, and Coordinate notation
providing information about a game to a graphical board widget

Member Enumeration Documentation

enum Chess::Board::CoordinateSystem

Coordinate system for the notation of the squares.

Enumerator

NormalCoordinates

Normal/traditional coordinates used by most chess variants.

The file is denoted by a letter, starting with file 'A' on the left. The rank is denoted by a number, starting with rank '1' at the bottom.

InvertedCoordinates

Inverted coordinates used by some eastern variants like Shogi.

The file is denoted by a number, starting with file '1' on the right. The rank is denoted by a letter, starting with rank 'A' at the top.

enum Chess::Board::FenNotation

Notation for FEN strings.

Enumerator

XFen

X-FEN notation.

Note: Specs: http://en.wikipedia.org/wiki/X-FEN

ShredderFen

Shredder FEN notation.

enum Chess::Board::MoveNotation

Notation for move strings.

Enumerator
StandardAlgebraic	Standard Algebraic notation (SAN).
LongAlgebraic	Long Algebraic/Coordinate notation.

Constructor & Destructor Documentation

Chess::Board::Board ( Zobrist * zobrist )

Creates a new Board object.

Parameters

zobrist Zobrist keys for quickly identifying and comparing positions. The Board class takes ownership of the zobrist object and takes care of deleting it.

Chess::Board::~Board ( )

virtual

Destructs the Board object.

Member Function Documentation

void Chess::Board::addToReserve	(	const Piece &	piece,
		int	count = `1`
	)

protected

Adds count pieces of type piece to the reserve.

int Chess::Board::arraySize ( ) const

inlineprotected

Returns the size of the board array, including the padding (the inaccessible wall squares).

bool Chess::Board::canMove ( )

protected

Returns true if the side to move has any legal moves.

int Chess::Board::captureType ( const Move & move ) const

protectedvirtual

Returns the type of piece captured by move. Returns Piece::NoPiece if move is not a capture.

Reimplemented in Chess::WesternBoard.

Square Chess::Board::chessSquare ( int index ) const

protected

Converts a square index into a Square object.

Square Chess::Board::chessSquare ( const QString & str ) const

protected

Converts a string into a Square object.

Board::CoordinateSystem Chess::Board::coordinateSystem ( ) const

virtual

Returns the coordinate system used in the variant.

virtual Board* Chess::Board::copy ( ) const

pure virtual

Creates and returns a deep copy of this board.

Implemented in Chess::ChangeOverBoard, Chess::CircularGryphonBoard, Chess::BerolinaGridBoard, Chess::SlippedGridBoard, Chess::KarOukBoard, Chess::SuperAndernachBoard, Chess::SimplifiedGryphonBoard, Chess::FiveCheckBoard, Chess::TwoKingsSymmetricalBoard, Chess::KingletBoard, Chess::ThreeCheckBoard, Chess::AntiAndernachBoard, Chess::DisplacedGridBoard, Chess::MakrukBoard, Chess::ShootBoard, Chess::SittuyinBoard, Chess::NewZealandBoard, Chess::AseanBoard, Chess::CourierBoard, Chess::ShatranjBoard, Chess::CodrusBoard, Chess::GrandBoard, Chess::AntiBoard, Chess::ExtinctionBoard, Chess::PlacementBoard, Chess::SuicideBoard, Chess::HordeBoard, Chess::OukBoard, Chess::GiveawayBoard, Chess::AndernachBoard, Chess::GryphonBoard, Chess::ModernBoard, Chess::SeirawanBoard, Chess::ChancellorBoard, Chess::JanusBoard, Chess::NCheckBoard, Chess::ChigorinBoard, Chess::BerolinaBoard, Chess::ChessgiBoard, Chess::CoRegalBoard, Chess::GustavBoard, Chess::TwoKingsEachBoard, Chess::GridBoard, Chess::KingOfTheHillBoard, Chess::LoopBoard, Chess::PocketKnightBoard, Chess::AlmostBoard, Chess::EmbassyBoard, Chess::HoppelPoppelBoard, Chess::RacingKingsBoard, Chess::RifleBoard, Chess::AmazonBoard, Chess::ChecklessBoard, Chess::FrcBoard, Chess::StandardBoard, Chess::LosAlamosBoard, Chess::ThreeKingsBoard, Chess::CaparandomBoard, Chess::JesonMorBoard, Chess::CrazyhouseBoard, Chess::GothicBoard, Chess::KnightMateBoard, Chess::LosersBoard, Chess::AiWokBoard, Chess::AtomicBoard, Chess::CapablancaBoard, and Chess::RestrictedMoveBoard.

virtual QString Chess::Board::defaultFenString ( ) const

pure virtual

Returns the variant's default starting FEN string.

Implemented in Chess::ChangeOverBoard, Chess::CircularGryphonBoard, Chess::BerolinaGridBoard, Chess::SlippedGridBoard, Chess::KarOukBoard, Chess::SimplifiedGryphonBoard, Chess::TwoKingsSymmetricalBoard, Chess::DisplacedGridBoard, Chess::MakrukBoard, Chess::SittuyinBoard, Chess::NewZealandBoard, Chess::AseanBoard, Chess::CourierBoard, Chess::GrandBoard, Chess::ShatranjBoard, Chess::AntiBoard, Chess::ExtinctionBoard, Chess::PlacementBoard, Chess::HordeBoard, Chess::OukBoard, Chess::GiveawayBoard, Chess::FrcBoard, Chess::GryphonBoard, Chess::ModernBoard, Chess::SeirawanBoard, Chess::ChancellorBoard, Chess::JanusBoard, Chess::CaparandomBoard, Chess::NCheckBoard, Chess::ChigorinBoard, Chess::CoRegalBoard, Chess::GustavBoard, Chess::PocketKnightBoard, Chess::TwoKingsEachBoard, Chess::GridBoard, Chess::LoopBoard, Chess::RacingKingsBoard, Chess::AlmostBoard, Chess::EmbassyBoard, Chess::HoppelPoppelBoard, Chess::LosAlamosBoard, Chess::RifleBoard, Chess::AmazonBoard, Chess::ChecklessBoard, Chess::JesonMorBoard, Chess::StandardBoard, Chess::CrazyhouseBoard, Chess::ThreeKingsBoard, Chess::CapablancaBoard, Chess::GothicBoard, Chess::KnightMateBoard, Chess::LosersBoard, Chess::AiWokBoard, and Chess::AtomicBoard.

QString Chess::Board::fenString ( FenNotation notation = XFen ) const

Returns the FEN string of the current board position in X-Fen or Shredder FEN notation

void Chess::Board::generateDropMoves	(	QVarLengthArray< Move > &	moves,
		int	pieceType
	)		const

protected

Generates piece drops for pieces of type pieceType.

Note: If pieceType is Piece::NoPiece, moves are generated for every piece type.

See also: generateMoves()

void Chess::Board::generateHoppingMoves	(	int	sourceSquare,
		const QVarLengthArray< int > &	offsets,
		QVarLengthArray< Move > &	moves
	)		const

protected

Generates hopping moves for a piece.

Parameters

sourceSquare	The source square of the hopping piece
offsets	An array of offsets for the target square

Note: The generated moves include captures

void Chess::Board::generateMoves	(	QVarLengthArray< Move > &	moves,
		int	pieceType = `Piece::NoPiece`
	)		const

protected

Generates pseudo-legal moves for pieces of type pieceType.

Note: If pieceType is Piece::NoPiece (default), moves are generated for every piece type.

See also: legalMoves()

virtual void Chess::Board::generateMovesForPiece	(	QVarLengthArray< Move > &	moves,
		int	pieceType,
		int	square
	)		const

protectedpure virtual

Generates pseudo-legal moves for a piece of pieceType at square square.

Note: It doesn't matter if square doesn't contain a piece of pieceType, the move generator ignores it.

Implemented in Chess::WesternBoard, Chess::ChangeOverBoard, Chess::MakrukBoard, Chess::SimplifiedGryphonBoard, Chess::SittuyinBoard, Chess::ShatranjBoard, Chess::CourierBoard, Chess::NewZealandBoard, Chess::SeirawanBoard, Chess::CrazyhouseBoard, Chess::OukBoard, Chess::PlacementBoard, Chess::GrandBoard, Chess::GryphonBoard, Chess::PocketKnightBoard, Chess::TwoKingsEachBoard, Chess::KnightMateBoard, and Chess::HoppelPoppelBoard.

void Chess::Board::generateSlidingMoves	(	int	sourceSquare,
		const QVarLengthArray< int > &	offsets,
		QVarLengthArray< Move > &	moves
	)		const

protected

Generates sliding moves for a piece.

Parameters

sourceSquare	The source square of the sliding piece
offsets	An array of offsets for the target square

Note: The generated moves include captures

GenericMove Chess::Board::genericMove ( const Move & move ) const

Converts a Move into a GenericMove.

Note: The board must be in a position where move can be made.

See also: moveFromGenericMove()

virtual int Chess::Board::height ( ) const

pure virtual

Returns the height of the board in squares.

Implemented in Chess::GrandBoard, Chess::WesternBoard, Chess::ModernBoard, Chess::ChancellorBoard, Chess::GustavBoard, Chess::JesonMorBoard, and Chess::LosAlamosBoard.

void Chess::Board::initialize ( )

Initializes the board. This function must be called before a game can be started on the board.

bool Chess::Board::isLegalMove ( const Move & move )

Returns true if move is legal in the current position.

virtual bool Chess::Board::isLegalPosition ( )

protectedpure virtual

Returns true if the current position is a legal position. If the position isn't legal it usually means that the last move was illegal.

Implemented in Chess::WesternBoard, Chess::ChangeOverBoard, Chess::SittuyinBoard, Chess::PlacementBoard, Chess::GryphonBoard, Chess::RacingKingsBoard, and Chess::ChecklessBoard.

bool Chess::Board::isRandomVariant ( ) const

virtual

Returns true if the variant uses randomized starting positions. The default value is false.

Reimplemented in Chess::FrcBoard, and Chess::CaparandomBoard.

bool Chess::Board::isRepetition ( const Move & move )

Returns true if move repeats a position that was reached earlier in the game.

bool Chess::Board::isValidSquare ( const Square & square ) const

Returns true if square is on the board.

quint64 Chess::Board::key ( ) const

inline

Returns the zobrist key for the current position.

QString Chess::Board::lanMoveString ( const Move & move )

protectedvirtual

Converts a Move object into a string in Long Algebraic Notation (LAN)

Reimplemented in Chess::WesternBoard, and Chess::SeirawanBoard.

const Move & Chess::Board::lastMove ( ) const

inlineprotected

Returns the last move made in the game.

QVector< Move > Chess::Board::legalMoves ( )

Returns a vector of legal moves in the current position.

void Chess::Board::makeMove	(	const Move &	move,
		BoardTransition *	transition = `nullptr`
	)

Makes a chess move on the board.

All details about piece movement, promotions, captures, drops, etc. are stored in transition. These details are useful mainly for updating a graphical representation of the board.

int Chess::Board::maxPieceSymbolLength ( ) const

protectedvirtual

Returns the maximal length of a piece symbol

Reimplemented in Chess::LoopBoard.

bool Chess::Board::moveExists ( const Move & move ) const

protected

Returns true if a pseudo-legal move move exists.

See also: isLegalMove()

Move Chess::Board::moveFromGenericMove ( const GenericMove & move ) const

Converts a GenericMove into a Move.

Note: The board must be in a position where move can be made.

See also: genericMove()

Move Chess::Board::moveFromLanString ( const QString & str )

protectedvirtual

Converts a string in LAN format into a Move object.

Reimplemented in Chess::WesternBoard, Chess::SeirawanBoard, and Chess::TwoKingsEachBoard.

virtual Move Chess::Board::moveFromSanString ( const QString & str )

protectedpure virtual

Converts a string in SAN format into a Move object.

Implemented in Chess::WesternBoard, Chess::SeirawanBoard, Chess::CrazyhouseBoard, Chess::JanusBoard, Chess::AndernachBoard, Chess::TwoKingsEachBoard, Chess::KnightMateBoard, and Chess::ModernBoard.

Move Chess::Board::moveFromString ( const QString & str )

Converts a move string into a Move.

Note: Returns a null move if move is illegal.; Notation is automatically detected, and can be anything that's specified in MoveNotation.

See also: moveString()

QString Chess::Board::moveString	(	const Move &	move,
		MoveNotation	notation
	)

Converts a Move into a string.

Note: The board must be in a position where move can be made.

See also: moveFromString()

Piece Chess::Board::pieceAt ( const Square & square ) const

Returns the piece at square.

Piece Chess::Board::pieceAt ( int square ) const

inlineprotected

Returns the piece at square.

Piece Chess::Board::pieceFromSymbol ( const QString & pieceSymbol ) const

Converts pieceSymbol into a Piece object.

bool Chess::Board::pieceHasMovement	(	int	pieceType,
		unsigned	movement
	)		const

inlineprotected

Returns true if pieceType can move like movement.

QStringList Chess::Board::pieceList ( Side side ) const

Returns list of the pieces of side in current position.

QString Chess::Board::pieceString ( int pieceType ) const

Returns the internationalized name of pieceType.

QString Chess::Board::pieceSymbol ( Piece piece ) const

Converts piece into a piece symbol.

int Chess::Board::plyCount ( ) const

inline

Returns the number of halfmoves (plies) played.

void Chess::Board::removeFromReserve ( const Piece & piece )

protected

Removes a piece of type piece from the reserve.

int Chess::Board::repeatCount ( ) const

Returns the number of times the current position was reached previously in the game.

QString Chess::Board::representation ( Piece piece ) const

Returns symbol for graphical representation of piece.

int Chess::Board::reserveCount ( Piece piece ) const

Returns the number of reserve pieces of type piece.

On variants that don't have piece drops this function always returns 0.

QList< Piece > Chess::Board::reservePieceTypes ( ) const

virtual

Returns a list of piece types that can be in the reserve, ie. captured pieces that can be dropped on the board.

The default implementation returns an empty list.

Reimplemented in Chess::SittuyinBoard, Chess::SeirawanBoard, Chess::PlacementBoard, Chess::PocketKnightBoard, and Chess::CrazyhouseBoard.

int Chess::Board::reserveType ( int pieceType ) const

protectedvirtual

Returns the reserve piece type corresponding to pieceType.

The returned value is the type of piece a player receives (in variants that have piece drops) when he captures a piece of type pieceType.

The default value is pieceType.

Reimplemented in Chess::CrazyhouseBoard, and Chess::PocketKnightBoard.

void Chess::Board::reset ( )

Sets the board position to the default starting position of the chess variant.

virtual Result Chess::Board::result ( )

pure virtual

Returns the result of the game, or Result::NoResult if the game is in progress.

Implemented in Chess::SittuyinBoard, Chess::KarOukBoard, Chess::MakrukBoard, Chess::AseanBoard, Chess::ShatranjBoard, Chess::AntiBoard, Chess::CodrusBoard, Chess::ExtinctionBoard, Chess::PlacementBoard, Chess::WesternBoard, Chess::HordeBoard, Chess::NCheckBoard, Chess::TwoKingsEachBoard, Chess::KingOfTheHillBoard, Chess::JesonMorBoard, Chess::RacingKingsBoard, Chess::ThreeKingsBoard, Chess::LosersBoard, and Chess::AtomicBoard.

int Chess::Board::reversibleMoveCount ( ) const

virtual

Returns the number of consecutive reversible moves made.

The default implementation always returns -1.

Reimplemented in Chess::WesternBoard.

virtual QString Chess::Board::sanMoveString ( const Move & move )

protectedpure virtual

Converts a Move object into a string in Standard Algebraic Notation (SAN).

Note: Specs: http://en.wikipedia.org/wiki/Algebraic_chess_notation

Implemented in Chess::WesternBoard, Chess::SeirawanBoard, Chess::CrazyhouseBoard, Chess::JanusBoard, Chess::AndernachBoard, and Chess::ModernBoard.

bool Chess::Board::setFenString ( const QString & fen )

Sets the board position according to a FEN string.

The fen string can be in standard FEN, X-FEN or Shredder FEN notation.

Returns true if successful; otherwise returns false.

void Chess::Board::setPieceType	(	int	type,
		const QString &	name,
		const QString &	symbol,
		unsigned	movement = `0`,
		const QString &	gsymbol = `QString()`
	)

protected

Defines a piece type used in the variant. If the piece isn't already defined, it's gets added here. Unlike other initialization which happens in vInitialize(), all piece types should be defined in the constructor.

Parameters

type	Type of the piece in integer format
name	The piece's name (internationalized string)
symbol	Short piece name or piece symbol
movement	A bit mask for the kinds of moves the piece can make.
gsymbol	Select the piece's graphical representation. If not set the symbol will be used (default).

void Chess::Board::setSquare	(	int	square,
		Piece	piece
	)

inlineprotected

Sets square to contain piece.

This function also updates the zobrist position key, so subclasses shouldn't mess with it directly.

Side Chess::Board::sideToMove ( ) const

inline

Returns the side to move.

int Chess::Board::squareIndex ( const Square & square ) const

protected

Converts a Square object into a square index.

int Chess::Board::squareIndex ( const QString & str ) const

protected

Converts a string into a square index.

QString Chess::Board::squareString ( int index ) const

protected

Converts a square index into a string.

QString Chess::Board::squareString ( const Square & square ) const

protected

Converts a Square object into a string.

QString Chess::Board::startingFenString ( ) const

inline

Returns the FEN string of the starting position.

Note: This is not always the same as defaultFenString().

Side Chess::Board::startingSide ( ) const

inline

Returns the side that made/makes the first move.

Result Chess::Board::tablebaseResult ( unsigned int * dtm = nullptr ) const

virtual

Returns the expected game result according to endgame tablebases.

If the position is a win for either player, dtm is set to the distance to mate, ie. the number of plies it takes to force a mate.

The default implementation always returns a null result.

Reimplemented in Chess::StandardBoard.

void Chess::Board::undoMove ( )

Reverses the last move.

Side Chess::Board::upperCaseSide ( ) const

virtual

Returns the side whose pieces are denoted by uppercase letters. The default value is White.

virtual QString Chess::Board::variant ( ) const

pure virtual

Returns the name of the chess variant.

Implemented in Chess::ChangeOverBoard, Chess::CircularGryphonBoard, Chess::BerolinaGridBoard, Chess::SlippedGridBoard, Chess::KarOukBoard, Chess::SuperAndernachBoard, Chess::SimplifiedGryphonBoard, Chess::TwoKingsSymmetricalBoard, Chess::KingletBoard, Chess::AntiAndernachBoard, Chess::DisplacedGridBoard, Chess::MakrukBoard, Chess::ShootBoard, Chess::SittuyinBoard, Chess::NewZealandBoard, Chess::AseanBoard, Chess::CourierBoard, Chess::ShatranjBoard, Chess::CodrusBoard, Chess::GrandBoard, Chess::AntiBoard, Chess::ExtinctionBoard, Chess::PlacementBoard, Chess::SuicideBoard, Chess::HordeBoard, Chess::OukBoard, Chess::GiveawayBoard, Chess::AndernachBoard, Chess::GryphonBoard, Chess::ModernBoard, Chess::SeirawanBoard, Chess::ChancellorBoard, Chess::JanusBoard, Chess::NCheckBoard, Chess::ChigorinBoard, Chess::BerolinaBoard, Chess::ChessgiBoard, Chess::CoRegalBoard, Chess::GustavBoard, Chess::PocketKnightBoard, Chess::TwoKingsEachBoard, Chess::GridBoard, Chess::KingOfTheHillBoard, Chess::LoopBoard, Chess::AlmostBoard, Chess::EmbassyBoard, Chess::HoppelPoppelBoard, Chess::RacingKingsBoard, Chess::RifleBoard, Chess::AmazonBoard, Chess::ChecklessBoard, Chess::FrcBoard, Chess::StandardBoard, Chess::LosAlamosBoard, Chess::ThreeKingsBoard, Chess::CaparandomBoard, Chess::CrazyhouseBoard, Chess::JesonMorBoard, Chess::GothicBoard, Chess::KnightMateBoard, Chess::LosersBoard, Chess::AiWokBoard, Chess::AtomicBoard, and Chess::CapablancaBoard.

bool Chess::Board::variantHasDrops ( ) const

virtual

Returns true if the variant allows piece drops. The default value is false.

See also: CrazyhouseBoard

Reimplemented in Chess::SittuyinBoard, Chess::SeirawanBoard, Chess::PlacementBoard, Chess::PocketKnightBoard, and Chess::CrazyhouseBoard.

bool Chess::Board::variantHasOptionalPromotions ( ) const

virtual

Returns true if the variant allows to skip a promotion (or a move treated as promotion) and make a normal move instead. The default value is false, i.e. mandatory promotions.

See also: GrandBoard; SeirawanBoard

Reimplemented in Chess::SittuyinBoard, Chess::SeirawanBoard, and Chess::GrandBoard.

bool Chess::Board::variantHasWallSquares ( ) const

virtual

Returns true if the board accepts wall squares, else false. The default value is false.

Reimplemented in Chess::GustavBoard.

virtual QString Chess::Board::vFenString ( FenNotation notation ) const

protectedpure virtual

Returns the latter part of the current position's FEN string.

This function is called by fenString(). The board state, side to move and hand pieces are handled by the base class. This function returns the rest of it, if any.

Implemented in Chess::WesternBoard, Chess::MakrukBoard, Chess::SeirawanBoard, Chess::OukBoard, and Chess::AseanBoard.

virtual void Chess::Board::vInitialize ( )

protectedpure virtual

Initializes the variant.

This function is called by initialize(). Subclasses shouldn't generally call it by themselves.

Implemented in Chess::WesternBoard, Chess::MakrukBoard, Chess::ShatranjBoard, Chess::CourierBoard, Chess::NCheckBoard, Chess::GryphonBoard, Chess::TwoKingsEachBoard, and Chess::AtomicBoard.

bool Chess::Board::vIsLegalMove ( const Move & move )

protectedvirtual

Returns true if move is a legal move.

This function is called by isLegalMove() after making sure that there is a pseudo-legal move same as move. This function shouldn't check for the existence of move by generating moves.

The default implementation only checks if the position after move is legal.

Reimplemented in Chess::WesternBoard, Chess::SittuyinBoard, Chess::ShootBoard, Chess::AntiBoard, Chess::CodrusBoard, Chess::GrandBoard, Chess::HordeBoard, Chess::AtomicBoard, Chess::LosersBoard, and Chess::RestrictedMoveBoard.

virtual void Chess::Board::vMakeMove	(	const Move &	move,
		BoardTransition *	transition
	)

protectedpure virtual

Makes move on the board.

This function is called by makeMove(), and should take care of everything except changing the side to move and updating the move history.

Details about piece movement, promotions, captures, drops, etc. should be stored in transition. If transition is 0 then it should be ignored.

Implemented in Chess::WesternBoard, Chess::MakrukBoard, Chess::SimplifiedGryphonBoard, Chess::SittuyinBoard, Chess::OukBoard, Chess::SeirawanBoard, Chess::CrazyhouseBoard, Chess::PlacementBoard, Chess::AndernachBoard, Chess::NCheckBoard, Chess::GryphonBoard, Chess::GiveawayBoard, Chess::PocketKnightBoard, Chess::AtomicBoard, and Chess::RifleBoard.

virtual bool Chess::Board::vSetFenString ( const QStringList & fen )

protectedpure virtual

Sets the board according to a FEN string.

This function is called by setFenString(). The board state, side to move and hand pieces are handled by the base class. This function reads the rest of the string, if any.

Implemented in Chess::WesternBoard, Chess::MakrukBoard, Chess::SittuyinBoard, Chess::OukBoard, Chess::AseanBoard, Chess::SeirawanBoard, Chess::PlacementBoard, Chess::AntiBoard, Chess::NCheckBoard, Chess::AtomicBoard, and Chess::LosersBoard.
