A board for N-Check Chess. More...

#include <ncheckboard.h>

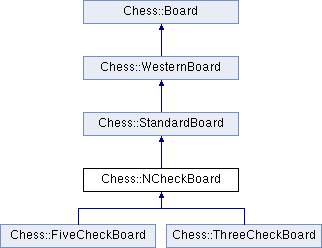

Inheritance diagram for Chess::NCheckBoard:

Public Member Functions
int	checksToWin (Side side) const

virtual Board *	copy () const

virtual QString	defaultFenString () const

virtual Result	result ()

virtual QString	variant () const

Public Member Functions inherited from Chess::StandardBoard
	StandardBoard ()

virtual Result	tablebaseResult (unsigned int *dtm=nullptr) const

Public Member Functions inherited from Chess::WesternBoard
virtual int	height () const

virtual int	reversibleMoveCount () const

	WesternBoard (WesternZobrist *zobrist)

virtual int	width () const

Public Member Functions inherited from Chess::Board
	Board (Zobrist *zobrist)

virtual CoordinateSystem	coordinateSystem () const

QString	fenString (FenNotation notation=XFen) const

GenericMove	genericMove (const Move &move) const

void	initialize ()

bool	isLegalMove (const Move &move)

virtual bool	isRandomVariant () const

bool	isRepetition (const Move &move)

bool	isValidSquare (const Square &square) const

quint64	key () const

QVector< Move >	legalMoves ()

void	makeMove (const Move &move, BoardTransition *transition=nullptr)

Move	moveFromGenericMove (const GenericMove &move) const

Move	moveFromString (const QString &str)

QString	moveString (const Move &move, MoveNotation notation)

Piece	pieceAt (const Square &square) const

Piece	pieceFromSymbol (const QString &pieceSymbol) const

QStringList	pieceList (Side side) const

QString	pieceString (int pieceType) const

QString	pieceSymbol (Piece piece) const

int	plyCount () const

int	repeatCount () const

QString	representation (Piece piece) const

int	reserveCount (Piece piece) const

virtual QList< Piece >	reservePieceTypes () const

void	reset ()

bool	setFenString (const QString &fen)

Side	sideToMove () const

QString	startingFenString () const

Side	startingSide () const

void	undoMove ()

virtual Side	upperCaseSide () const

virtual bool	variantHasDrops () const

virtual bool	variantHasOptionalPromotions () const

virtual bool	variantHasWallSquares () const

virtual	~Board ()

Protected Member Functions
int	checkLimit () const

	NCheckBoard (int n=3)

virtual QString	vFenIncludeString (FenNotation notation) const

virtual void	vInitialize ()

virtual void	vMakeMove (const Move &move, BoardTransition *transition)

virtual bool	vSetFenString (const QStringList &fen)

virtual void	vUndoMove (const Move &move)

Protected Member Functions inherited from Chess::WesternBoard
virtual void	addPromotions (int sourceSquare, int targetSquare, QVarLengthArray< Move > &moves) const

virtual int	captureType (const Move &move) const

virtual int	castlingFile (CastlingSide castlingSide) const

int	enpassantSquare () const

virtual void	generateMovesForPiece (QVarLengthArray< Move > &moves, int pieceType, int square) const

virtual bool	hasCastling () const

bool	hasCastlingRight (Side side, CastlingSide castlingSide) const

virtual bool	hasEnPassantCaptures () const

virtual bool	inCheck (Side side, int square=0) const

virtual bool	isLegalPosition ()

virtual bool	kingCanCapture () const

virtual bool	kingsCountAssertion (int whiteKings, int blackKings) const

int	kingSquare (Side side) const

virtual QString	lanMoveString (const Move &move)

virtual Move	moveFromLanString (const QString &str)

virtual Move	moveFromSanString (const QString &str)

virtual bool	parseCastlingRights (QChar c)

int	pawnAmbiguity (StepType type=FreeStep) const

virtual bool	pawnHasDoubleStep () const

void	removeCastlingRights (int square)

void	removeCastlingRights (Side side)

virtual QString	sanMoveString (const Move &move)

virtual bool	variantHasChanneling (Side side, int square) const

virtual QString	vFenString (FenNotation notation) const

virtual bool	vIsLegalMove (const Move &move)

Protected Member Functions inherited from Chess::Board
void	addToReserve (const Piece &piece, int count=1)

int	arraySize () const

bool	canMove ()

Square	chessSquare (int index) const

Square	chessSquare (const QString &str) const

void	generateDropMoves (QVarLengthArray< Move > &moves, int pieceType) const

void	generateHoppingMoves (int sourceSquare, const QVarLengthArray< int > &offsets, QVarLengthArray< Move > &moves) const

void	generateMoves (QVarLengthArray< Move > &moves, int pieceType=Piece::NoPiece) const

void	generateSlidingMoves (int sourceSquare, const QVarLengthArray< int > &offsets, QVarLengthArray< Move > &moves) const

const Move &	lastMove () const

virtual int	maxPieceSymbolLength () const

bool	moveExists (const Move &move) const

Piece	pieceAt (int square) const

bool	pieceHasMovement (int pieceType, unsigned movement) const

void	removeFromReserve (const Piece &piece)

virtual int	reserveType (int pieceType) const

void	setPieceType (int type, const QString &name, const QString &symbol, unsigned movement=0, const QString &gsymbol=QString())

void	setSquare (int square, Piece piece)

int	squareIndex (const Square &square) const

int	squareIndex (const QString &str) const

QString	squareString (int index) const

QString	squareString (const Square &square) const

void	xorKey (quint64 key)

Additional Inherited Members
Public Types inherited from Chess::WesternBoard
enum	WesternPieceType { Pawn = 1, Knight, Bishop, Rook, Queen, King }

Public Types inherited from Chess::Board
enum	CoordinateSystem { NormalCoordinates, InvertedCoordinates }

enum	FenNotation { XFen, ShredderFen }

enum	MoveNotation { StandardAlgebraic, LongAlgebraic }

Protected Types inherited from Chess::WesternBoard
enum	CastlingSide { QueenSide, KingSide, NoCastlingSide }

enum	StepType { NoStep = 0, FreeStep = 1, CaptureStep = 2 }

Protected Attributes inherited from Chess::WesternBoard
QVarLengthArray< PawnStep, 8 >	m_pawnSteps

Static Protected Attributes inherited from Chess::WesternBoard
static const unsigned	BishopMovement = 4

static const unsigned	KnightMovement = 2

static const unsigned	RookMovement = 8

Detailed Description

A board for N-Check Chess.

N-Check chess is a variant of standard chess with an additional rule. A player also wins when he gives check n times in a game.

Note: Rules: http://en.wikipedia.org/wiki/Three-check_chess

NCheckBoard uses Polyglot-compatible zobrist position keys, so N-Check opening books in Polyglot format could be used.

Note: Standard Chess Rules: http://www.fide.com/component/handbook/?id=124&view=article

See also: PolyglotBook

Constructor & Destructor Documentation

Chess::NCheckBoard::NCheckBoard ( int n = 3 )

protected

Creates a new NCheckBoard object. Giving the n -th check wins. Defaults to Three-Check (variant: 3Check)

Member Function Documentation

int Chess::NCheckBoard::checkLimit ( ) const

inlineprotected

Returns total number of checks necessary to win

int Chess::NCheckBoard::checksToWin ( Side side ) const

Returns number of checks yet needed for side to win

Board * Chess::NCheckBoard::copy ( ) const

virtual

Creates and returns a deep copy of this board.

Reimplemented from Chess::StandardBoard.

Reimplemented in Chess::FiveCheckBoard, and Chess::ThreeCheckBoard.

QString Chess::NCheckBoard::defaultFenString ( ) const

virtual

Returns the variant's default starting FEN string.

Reimplemented from Chess::StandardBoard.

Result Chess::NCheckBoard::result ( )

virtual

Returns the result of the game, or Result::NoResult if the game is in progress.

Reimplemented from Chess::WesternBoard.

QString Chess::NCheckBoard::variant ( ) const

virtual

Returns the name of the chess variant.

Reimplemented from Chess::StandardBoard.

QString Chess::NCheckBoard::vFenIncludeString ( Board::FenNotation notation ) const

protectedvirtual

A format to extend FEN for N-Check was suggested by H. G. Muller: The numbers of checks to win the game are given for both sides in succession of the the en passant field. They are separated by a single plus sign "+" (check symbol) without any other character in between (like 3+3). In contrast SCIDB and Lichess use two plus signs and forward counters (like +0+0) appended to the normal FEN.

Reimplemented from Chess::WesternBoard.

void Chess::NCheckBoard::vInitialize ( )

protectedvirtual

Initializes the variant.

This function is called by initialize(). Subclasses shouldn't generally call it by themselves.

Reimplemented from Chess::WesternBoard.

void Chess::NCheckBoard::vMakeMove	(	const Move &	move,
		BoardTransition *	transition
	)

protectedvirtual

Makes move on the board.

This function is called by makeMove(), and should take care of everything except changing the side to move and updating the move history.

Details about piece movement, promotions, captures, drops, etc. should be stored in transition. If transition is 0 then it should be ignored.

Reimplemented from Chess::WesternBoard.

bool Chess::NCheckBoard::vSetFenString ( const QStringList & fen )

protectedvirtual

This method extracts check counters from extended FEN (like Xboard / Stockfish and SCIDB / Lichess formats) and is tolerant to standard FEN. If no counters can be extracted (e.g. from a standard FEN) the number of checks to win will be set to checkLimit. Calls StandardBoard method for FEN handling.

Reimplemented from Chess::WesternBoard.

void Chess::NCheckBoard::vUndoMove ( const Move & move )

protectedvirtual

Reverses move on the board.

This function is called by undoMove() after changing the side to move to the side that made it.

Note: Unlike vMakeMove(), this function doesn't require subclasses to update the zobrist position key.

Reimplemented from Chess::WesternBoard.

The documentation for this class was generated from the following files:

projects/lib/src/board/ncheckboard.h
projects/lib/src/board/ncheckboard.cpp
