Manages a legend inside a QCustomPlot. More...

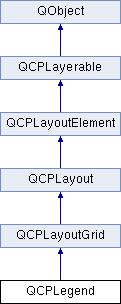

Inheritance diagram for QCPLegend:

Public Types
enum	SelectablePart { spNone = 0x000, spLegendBox = 0x001, spItems = 0x002 }

Public Types inherited from QCPLayoutGrid
enum	FillOrder { foRowsFirst, foColumnsFirst }

Public Types inherited from QCPLayoutElement
enum	SizeConstraintRect { scrInnerRect, scrOuterRect }

enum	UpdatePhase { upPreparation, upMargins, upLayout }

Signals
void	selectableChanged (QCPLegend::SelectableParts parts)

void	selectionChanged (QCPLegend::SelectableParts parts)

Signals inherited from QCPLayerable
void	layerChanged (QCPLayer *newLayer)

Public Member Functions
bool	addItem (QCPAbstractLegendItem *item)

QPen	borderPen () const

QBrush	brush () const

void	clearItems ()

QFont	font () const

bool	hasItem (QCPAbstractLegendItem *item) const

bool	hasItemWithPlottable (const QCPAbstractPlottable *plottable) const

QPen	iconBorderPen () const

QSize	iconSize () const

int	iconTextPadding () const

QCPAbstractLegendItem *	item (int index) const

int	itemCount () const

QCPPlottableLegendItem *	itemWithPlottable (const QCPAbstractPlottable *plottable) const

	QCPLegend ()

bool	removeItem (int index)

bool	removeItem (QCPAbstractLegendItem *item)

SelectableParts	selectableParts () const

QPen	selectedBorderPen () const

QBrush	selectedBrush () const

QFont	selectedFont () const

QPen	selectedIconBorderPen () const

QList< QCPAbstractLegendItem * >	selectedItems () const

SelectableParts	selectedParts () const

QColor	selectedTextColor () const

virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const Q_DECL_OVERRIDE

void	setBorderPen (const QPen &pen)

void	setBrush (const QBrush &brush)

void	setFont (const QFont &font)

void	setIconBorderPen (const QPen &pen)

void	setIconSize (const QSize &size)

void	setIconSize (int width, int height)

void	setIconTextPadding (int padding)

Q_SLOT void	setSelectableParts (const SelectableParts &selectableParts)

void	setSelectedBorderPen (const QPen &pen)

void	setSelectedBrush (const QBrush &brush)

void	setSelectedFont (const QFont &font)

void	setSelectedIconBorderPen (const QPen &pen)

Q_SLOT void	setSelectedParts (const SelectableParts &selectedParts)

void	setSelectedTextColor (const QColor &color)

void	setTextColor (const QColor &color)

QColor	textColor () const

Public Member Functions inherited from QCPLayoutGrid
bool	addElement (int row, int column, QCPLayoutElement *element)

bool	addElement (QCPLayoutElement *element)

int	columnCount () const

int	columnSpacing () const

QList< double >	columnStretchFactors () const

QCPLayoutElement *	element (int row, int column) const

virtual QCPLayoutElement *	elementAt (int index) const Q_DECL_OVERRIDE

virtual int	elementCount () const Q_DECL_OVERRIDE

virtual QList< QCPLayoutElement * >	elements (bool recursive) const Q_DECL_OVERRIDE

void	expandTo (int newRowCount, int newColumnCount)

FillOrder	fillOrder () const

bool	hasElement (int row, int column)

void	indexToRowCol (int index, int &row, int &column) const

void	insertColumn (int newIndex)

void	insertRow (int newIndex)

virtual QSize	maximumOuterSizeHint () const Q_DECL_OVERRIDE

virtual QSize	minimumOuterSizeHint () const Q_DECL_OVERRIDE

	QCPLayoutGrid ()

int	rowColToIndex (int row, int column) const

int	rowCount () const

int	rowSpacing () const

QList< double >	rowStretchFactors () const

void	setColumnSpacing (int pixels)

void	setColumnStretchFactor (int column, double factor)

void	setColumnStretchFactors (const QList< double > &factors)

void	setFillOrder (FillOrder order, bool rearrange=true)

void	setRowSpacing (int pixels)

void	setRowStretchFactor (int row, double factor)

void	setRowStretchFactors (const QList< double > &factors)

void	setWrap (int count)

virtual void	simplify () Q_DECL_OVERRIDE

virtual bool	take (QCPLayoutElement *element) Q_DECL_OVERRIDE

virtual QCPLayoutElement *	takeAt (int index) Q_DECL_OVERRIDE

virtual void	updateLayout () Q_DECL_OVERRIDE

int	wrap () const

Public Member Functions inherited from QCPLayout
void	clear ()

	QCPLayout ()

bool	remove (QCPLayoutElement *element)

bool	removeAt (int index)

virtual void	update (UpdatePhase phase) Q_DECL_OVERRIDE

Public Member Functions inherited from QCPLayoutElement
QCP::MarginSides	autoMargins () const

QCPLayout *	layout () const

QCPMarginGroup *	marginGroup (QCP::MarginSide side) const

QHash< QCP::MarginSide, QCPMarginGroup * >	marginGroups () const

QMargins	margins () const

QSize	maximumSize () const

QMargins	minimumMargins () const

QSize	minimumSize () const

QRect	outerRect () const

	QCPLayoutElement (QCustomPlot *parentPlot=0)

QRect	rect () const

void	setAutoMargins (QCP::MarginSides sides)

void	setMarginGroup (QCP::MarginSides sides, QCPMarginGroup *group)

void	setMargins (const QMargins &margins)

void	setMaximumSize (const QSize &size)

void	setMaximumSize (int width, int height)

void	setMinimumMargins (const QMargins &margins)

void	setMinimumSize (const QSize &size)

void	setMinimumSize (int width, int height)

void	setOuterRect (const QRect &rect)

void	setSizeConstraintRect (SizeConstraintRect constraintRect)

SizeConstraintRect	sizeConstraintRect () const

Public Member Functions inherited from QCPLayerable
bool	antialiased () const

QCPLayer *	layer () const

QCPLayerable *	parentLayerable () const

QCustomPlot *	parentPlot () const

	QCPLayerable (QCustomPlot plot, QString targetLayer=QString(), QCPLayerable parentLayerable=0)

bool	realVisibility () const

void	setAntialiased (bool enabled)

Q_SLOT bool	setLayer (QCPLayer *layer)

bool	setLayer (const QString &layerName)

void	setVisible (bool on)

bool	visible () const

Protected Member Functions
virtual void	applyDefaultAntialiasingHint (QCPPainter *painter) const Q_DECL_OVERRIDE

virtual void	deselectEvent (bool *selectionStateChanged) Q_DECL_OVERRIDE

virtual void	draw (QCPPainter *painter) Q_DECL_OVERRIDE

QPen	getBorderPen () const

QBrush	getBrush () const

virtual void	parentPlotInitialized (QCustomPlot *parentPlot) Q_DECL_OVERRIDE

virtual void	selectEvent (QMouseEvent event, bool additive, const QVariant &details, bool selectionStateChanged) Q_DECL_OVERRIDE

virtual QCP::Interaction	selectionCategory () const Q_DECL_OVERRIDE

Protected Member Functions inherited from QCPLayoutGrid
void	getMaximumRowColSizes (QVector< int > maxColWidths, QVector< int > maxRowHeights) const

void	getMinimumRowColSizes (QVector< int > minColWidths, QVector< int > minRowHeights) const

Protected Member Functions inherited from QCPLayout
void	adoptElement (QCPLayoutElement *el)

QVector< int >	getSectionSizes (QVector< int > maxSizes, QVector< int > minSizes, QVector< double > stretchFactors, int totalSize) const

void	releaseElement (QCPLayoutElement *el)

void	sizeConstraintsChanged () const

Protected Member Functions inherited from QCPLayoutElement
virtual int	calculateAutoMargin (QCP::MarginSide side)

virtual void	layoutChanged ()

Protected Member Functions inherited from QCPLayerable
void	applyAntialiasingHint (QCPPainter *painter, bool localAntialiased, QCP::AntialiasedElement overrideElement) const

virtual QRect	clipRect () const

void	initializeParentPlot (QCustomPlot *parentPlot)

virtual void	mouseDoubleClickEvent (QMouseEvent *event, const QVariant &details)

virtual void	mouseMoveEvent (QMouseEvent *event, const QPointF &startPos)

virtual void	mousePressEvent (QMouseEvent *event, const QVariant &details)

virtual void	mouseReleaseEvent (QMouseEvent *event, const QPointF &startPos)

bool	moveToLayer (QCPLayer *layer, bool prepend)

void	setParentLayerable (QCPLayerable *parentLayerable)

virtual void	wheelEvent (QWheelEvent *event)

Protected Attributes
QPen	mBorderPen

QBrush	mBrush

QFont	mFont

QPen	mIconBorderPen

QSize	mIconSize

int	mIconTextPadding

SelectableParts	mSelectableParts

QPen	mSelectedBorderPen

QBrush	mSelectedBrush

QFont	mSelectedFont

QPen	mSelectedIconBorderPen

SelectableParts	mSelectedParts

QColor	mSelectedTextColor

QColor	mTextColor

Protected Attributes inherited from QCPLayoutGrid
int	mColumnSpacing

QList< double >	mColumnStretchFactors

QList< QList< QCPLayoutElement * > >	mElements

FillOrder	mFillOrder

int	mRowSpacing

QList< double >	mRowStretchFactors

int	mWrap

Protected Attributes inherited from QCPLayoutElement
QCP::MarginSides	mAutoMargins

QHash< QCP::MarginSide, QCPMarginGroup * >	mMarginGroups

QMargins	mMargins

QSize	mMaximumSize

QMargins	mMinimumMargins

QSize	mMinimumSize

QRect	mOuterRect

QCPLayout *	mParentLayout

QRect	mRect

SizeConstraintRect	mSizeConstraintRect

Protected Attributes inherited from QCPLayerable
bool	mAntialiased

QCPLayer *	mLayer

QPointer< QCPLayerable >	mParentLayerable

QCustomPlot *	mParentPlot

bool	mVisible

Friends
class	QCPAbstractLegendItem

class	QCustomPlot

Additional Inherited Members
Static Protected Member Functions inherited from QCPLayout
static QSize	getFinalMaximumOuterSize (const QCPLayoutElement *el)

static QSize	getFinalMinimumOuterSize (const QCPLayoutElement *el)

Detailed Description

Manages a legend inside a QCustomPlot.

A legend is a small box somewhere in the plot which lists plottables with their name and icon.

A legend is populated with legend items by calling QCPAbstractPlottable::addToLegend on the plottable, for which a legend item shall be created. In the case of the main legend (QCustomPlot::legend), simply adding plottables to the plot while QCustomPlot::setAutoAddPlottableToLegend is set to true (the default) creates corresponding legend items. The legend item associated with a certain plottable can be removed with QCPAbstractPlottable::removeFromLegend. However, QCPLegend also offers an interface to add and manipulate legend items directly: item, itemWithPlottable, itemCount, addItem, removeItem, etc.

Since QCPLegend derives from QCPLayoutGrid, it can be placed in any position a QCPLayoutElement may be positioned. The legend items are themselves QCPLayoutElements which are placed in the grid layout of the legend. QCPLegend only adds an interface specialized for handling child elements of type QCPAbstractLegendItem, as mentioned above. In principle, any other layout elements may also be added to a legend via the normal QCPLayoutGrid interface. See the special page about The Layout System for examples on how to add other elements to the legend and move it outside the axis rect.

Use the methods setFillOrder and setWrap inherited from QCPLayoutGrid to control in which order (column first or row first) the legend is filled up when calling addItem, and at which column or row wrapping occurs. The default fill order for legends is foRowsFirst.

By default, every QCustomPlot has one legend (QCustomPlot::legend) which is placed in the inset layout of the main axis rect (QCPAxisRect::insetLayout). To move the legend to another position inside the axis rect, use the methods of the QCPLayoutInset. To move the legend outside of the axis rect, place it anywhere else with the QCPLayout/QCPLayoutElement interface.

Member Enumeration Documentation

enum QCPLegend::SelectablePart

Defines the selectable parts of a legend

See also: setSelectedParts, setSelectableParts

Enumerator
spNone	`0x000` None
spLegendBox	`0x001` The legend box (frame)
spItems	`0x002` Legend items individually (see selectedItems)

Constructor & Destructor Documentation

QCPLegend::QCPLegend ( )

explicit

Constructs a new QCPLegend instance with default values.

Note that by default, QCustomPlot already contains a legend ready to be used as QCustomPlot::legend

Member Function Documentation

bool QCPLegend::addItem ( QCPAbstractLegendItem * item )

Adds item to the legend, if it's not present already. The element is arranged according to the current fill order (setFillOrder) and wrapping (setWrap).

Returns true on sucess, i.e. if the item wasn't in the list already and has been successfuly added.

The legend takes ownership of the item.

See also: removeItem, item, hasItem

void QCPLegend::clearItems ( )

Removes all items from the legend.

bool QCPLegend::hasItem ( QCPAbstractLegendItem * item ) const

Returns whether the legend contains item.

See also: hasItemWithPlottable

bool QCPLegend::hasItemWithPlottable ( const QCPAbstractPlottable * plottable ) const

Returns whether the legend contains a QCPPlottableLegendItem which is associated with plottable (e.g. a QCPGraph*). If such an item isn't in the legend, returns false.

See also: itemWithPlottable

QCPAbstractLegendItem * QCPLegend::item ( int index ) const

Returns the item with index i.

Note that the linear index depends on the current fill order (setFillOrder).

See also: itemCount, addItem, itemWithPlottable

int QCPLegend::itemCount ( ) const

Returns the number of items currently in the legend.

Note that if empty cells are in the legend (e.g. by calling methods of the QCPLayoutGrid base class which allows creating empty cells), they are included in the returned count.

See also: item

QCPPlottableLegendItem * QCPLegend::itemWithPlottable ( const QCPAbstractPlottable * plottable ) const

Returns the QCPPlottableLegendItem which is associated with plottable (e.g. a QCPGraph*). If such an item isn't in the legend, returns 0.

See also: hasItemWithPlottable

bool QCPLegend::removeItem ( int index )

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Removes the item with the specified index from the legend and deletes it.

After successful removal, the legend is reordered according to the current fill order (setFillOrder) and wrapping (setWrap), so no empty cell remains where the removed item was. If you don't want this, rather use the raw element interface of QCPLayoutGrid.

Returns true, if successful. Unlike QCPLayoutGrid::removeAt, this method only removes elements derived from QCPAbstractLegendItem.

See also: itemCount, clearItems

bool QCPLegend::removeItem ( QCPAbstractLegendItem * item )

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Removes item from the legend and deletes it.

After successful removal, the legend is reordered according to the current fill order (setFillOrder) and wrapping (setWrap), so no empty cell remains where the removed item was. If you don't want this, rather use the raw element interface of QCPLayoutGrid.

Returns true, if successful.

See also: clearItems

QList< QCPAbstractLegendItem * > QCPLegend::selectedItems ( ) const

Returns the legend items that are currently selected. If no items are selected, the list is empty.

See also: QCPAbstractLegendItem::setSelected, setSelectable

void QCPLegend::selectionChanged ( QCPLegend::SelectableParts selection )

signal

This signal is emitted when the selection state of this legend has changed.

See also: setSelectedParts, setSelectableParts

double QCPLegend::selectTest	(	const QPointF &	pos,
		bool	onlySelectable,
		QVariant *	details = `0`
	)		const

virtual

Layout elements are sensitive to events inside their outer rect. If pos is within the outer rect, this method returns a value corresponding to 0.99 times the parent plot's selection tolerance. However, layout elements are not selectable by default. So if onlySelectable is true, -1.0 is returned.

See QCPLayerable::selectTest for a general explanation of this virtual method.

QCPLayoutElement subclasses may reimplement this method to provide more specific selection test behaviour.

Reimplemented from QCPLayoutElement.

void QCPLegend::setBorderPen ( const QPen & pen )

Sets the pen, the border of the entire legend is drawn with.

void QCPLegend::setBrush ( const QBrush & brush )

Sets the brush of the legend background.

void QCPLegend::setFont ( const QFont & font )

Sets the default font of legend text. Legend items that draw text (e.g. the name of a graph) will use this font by default. However, a different font can be specified on a per-item-basis by accessing the specific legend item.

This function will also set font on all already existing legend items.

See also: QCPAbstractLegendItem::setFont

void QCPLegend::setIconBorderPen ( const QPen & pen )

Sets the pen used to draw a border around each legend icon. Legend items that draw an icon (e.g. a visual representation of the graph) will use this pen by default.

If no border is wanted, set this to Qt::NoPen.

void QCPLegend::setIconSize ( const QSize & size )

Sets the size of legend icons. Legend items that draw an icon (e.g. a visual representation of the graph) will use this size by default.

void QCPLegend::setIconSize	(	int	width,
		int	height
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

void QCPLegend::setIconTextPadding ( int padding )

Sets the horizontal space in pixels between the legend icon and the text next to it. Legend items that draw an icon (e.g. a visual representation of the graph) and text (e.g. the name of the graph) will use this space by default.

void QCPLegend::setSelectableParts ( const SelectableParts & selectable )

Sets whether the user can (de-)select the parts in selectable by clicking on the QCustomPlot surface. (When QCustomPlot::setInteractions contains QCP::iSelectLegend.)

However, even when selectable is set to a value not allowing the selection of a specific part, it is still possible to set the selection of this part manually, by calling setSelectedParts directly.

See also: SelectablePart, setSelectedParts

void QCPLegend::setSelectedBorderPen ( const QPen & pen )

When the legend box is selected, this pen is used to draw the border instead of the normal pen set via setBorderPen.

See also: setSelectedParts, setSelectableParts, setSelectedBrush

void QCPLegend::setSelectedBrush ( const QBrush & brush )

When the legend box is selected, this brush is used to draw the legend background instead of the normal brush set via setBrush.

See also: setSelectedParts, setSelectableParts, setSelectedBorderPen

void QCPLegend::setSelectedFont ( const QFont & font )

Sets the default font that is used by legend items when they are selected.

This function will also set font on all already existing legend items.

See also: setFont, QCPAbstractLegendItem::setSelectedFont

void QCPLegend::setSelectedIconBorderPen ( const QPen & pen )

Sets the pen legend items will use to draw their icon borders, when they are selected.

See also: setSelectedParts, setSelectableParts, setSelectedFont

void QCPLegend::setSelectedParts ( const SelectableParts & selected )

Sets the selected state of the respective legend parts described by SelectablePart. When a part is selected, it uses a different pen/font and brush. If some legend items are selected and selected doesn't contain spItems, those items become deselected.

The entire selection mechanism is handled automatically when QCustomPlot::setInteractions contains iSelectLegend. You only need to call this function when you wish to change the selection state manually.

This function can change the selection state of a part even when setSelectableParts was set to a value that actually excludes the part.

emits the selectionChanged signal when selected is different from the previous selection state.

Note that it doesn't make sense to set the selected state spItems here when it wasn't set before, because there's no way to specify which exact items to newly select. Do this by calling QCPAbstractLegendItem::setSelected directly on the legend item you wish to select.

See also: SelectablePart, setSelectableParts, selectTest, setSelectedBorderPen, setSelectedIconBorderPen, setSelectedBrush, setSelectedFont

void QCPLegend::setSelectedTextColor ( const QColor & color )

Sets the default text color that is used by legend items when they are selected.

This function will also set color on all already existing legend items.

See also: setTextColor, QCPAbstractLegendItem::setSelectedTextColor

void QCPLegend::setTextColor ( const QColor & color )

Sets the default color of legend text. Legend items that draw text (e.g. the name of a graph) will use this color by default. However, a different colors can be specified on a per-item-basis by accessing the specific legend item.

This function will also set color on all already existing legend items.

See also: QCPAbstractLegendItem::setTextColor

The documentation for this class was generated from the following files:

projects/gui/3rdparty/qcustomplot/qcustomplot.h
projects/gui/3rdparty/qcustomplot/qcustomplot.cpp

Public Types

Signals

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation
